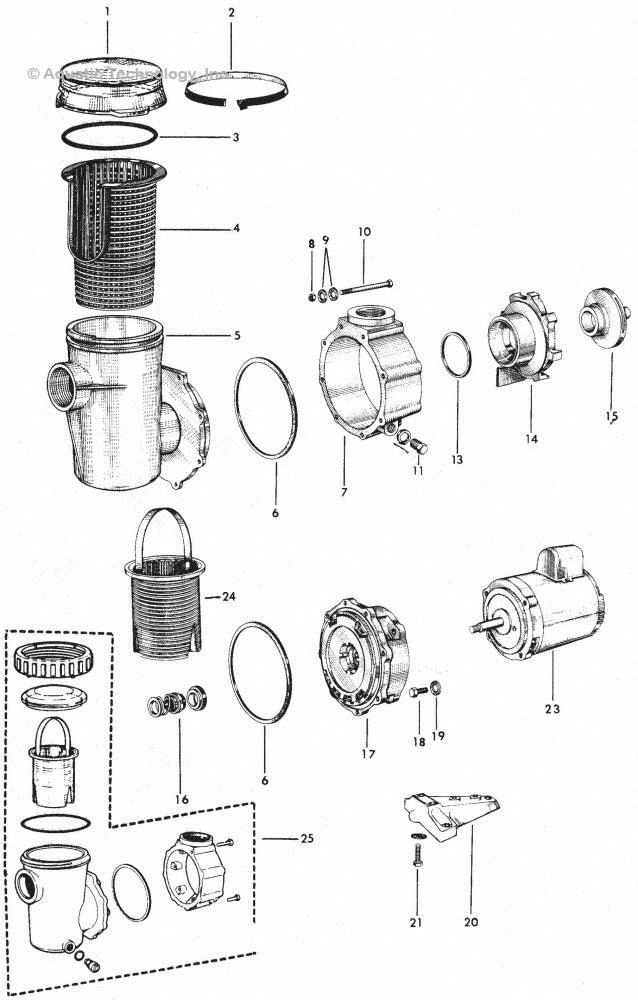

Jacuzzi PH and UPH Pump Parts Diagram

Jacuzzi PH and UPH Pump Parts

Frequently Purchased

APCAS201
 		Generic Pump Seal Assembly for SPX1600Z2, U9358, 374070009 - APCAS201
318 in stock
 $3.99
31-1609-06-R2
 		Jacuzzi Filter/Pump Drain Plugs With O-Ring - 1/4 Inch - Pack of 2 - 31-1609-06-R2
239 in stock
 $7.09
47-0355-06
 		RMST-24/ST-24 Filter Lid O-Ring - 47-0355-06
123 in stock
 $1.44
16-1052-15-R
 		Jacuzzi/Cygnet L Series Strainer Basket - 16-1052-15-R
21 in stock
 $32.87
UST1152
 		1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - UST1152
1426 in stock
 $305.35
Any key items not listed on the above schematic are no longer available.
APCAS201
Generic Pump Seal Assembly for SPX1600Z2, U9358, 374070009
318 in stock
Item #: APCAS201
$3.99
31-1609-06-R2
11 Jacuzzi Filter/Pump Drain Plugs With O-Ring - 1/4 Inch - Pack of 2
239 in stock
Item #: 31-1609-06-R2
$7.09
47-0355-06
3 RMST-24/ST-24 Filter Lid O-Ring
123 in stock
Item #: 47-0355-06
$1.44
16-1052-15-R
4 Jacuzzi/Cygnet L Series Strainer Basket
21 in stock
Item #: 16-1052-15-R
$32.87
UST1152
23d 1-1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
1426 in stock
Item #: UST1152
$305.35
UST1102
23c 1 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
1693 in stock
Item #: UST1102
$278.06
UST1072
23b 3/4 HP Pump Motor 56J Frame Threaded Shaft - 1-Phase 115/230 Volts 60 Hz- Up-Rated
316 in stock
Item #: UST1072
$259.91
UST1202
23e 2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated
336 in stock
Item #: UST1202
$401.76
47-0462-06
13 P/PC/PH Diffuser Ring - Square-Cut
189 in stock
Item #: 47-0462-06
$4.42
UQC1152
23d 1-1/2 HP Pump Motor 48Y Frame - 1-Speed 1-Phase 115/230 Volts - Up-Rated - Energy Efficient
16 in stock
Item #: UQC1152
$351.63
ST1052
23a 1/2 HP Pump Motor 56J Frame - 1-Speed 1-Phase 115/230 Volts - Full-Rated
28 in stock
Item #: ST1052
$264.87
ST1302V1
23f 3 HP Pump Motor 56J Frame - 1-Speed 1-Phase 208-230 Volts - Max-Rated
31 in stock
Item #: ST1302V1
$675.83
47-0466-02
6 Gasket, Cover 1.5-2 HP
4 in stock
Item #: 47-0466-02
$7.80
05-3800-01-R
15 Magnum High Flow Impeller - 1/2 HP Full-Rated and 3/4 HP Up-Rated
10 in stock
Item #: 05-3800-01-R
$50.52
05-3803-08-R
15 Magnum High Flow Impeller - 1-1/2 HP Full-Rated and 2 HP Up-Rated
10 in stock
Item #: 05-3803-08-R
$50.52
05-380-506-R
15 Magnum High Flow Impeller - 3 HP Full-Rated
3 in stock
Item #: 05-380-506-R
$50.52
EVC130
23c 1.30/1.30 HP VGreen Pump Motor 56J Frame C-Face - 115/230 Volts - TEFC
51 in stock
Item #: EVC130
$565.11
EVQ165
23d 1.65/1.50 HP VGreen Pump Motor 48Y Frame Square - 115/230 Volts - TEFC
93 in stock
Item #: EVQ165
$612.73
EVC165
23d 1.65/1.50 HP VGreen Pump Motor 56J Frame C-Face - 115/230 Volts - TEFC
126 in stock
Item #: EVC165
$624.32
05-3801-00-R
15 PH/UPH Pump Impeller - 3/4 - 1 HP
5 in stock
Item #: 05-3801-00-R
$50.84
02-1351-01-R
17 P/PC/EP Pump Seal Bracket - 1-1/2 to 3 HP
Usually ships in 5-7 days
Item #: 02-1351-01-R
$89.96
