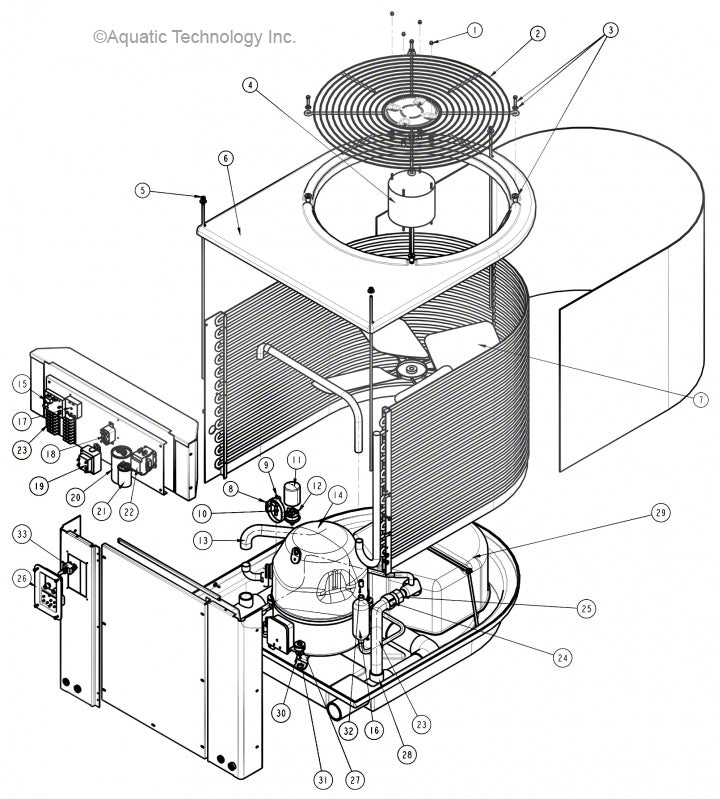

Pentair MiniMax Plus Heat Pump Parts Diagram

Pentair MiniMax Plus Heat Pump Parts

Frequently Purchased

155187
 		Minimax Plus On/Off Toggle Switch - 155187
107 in stock
 $21.45
473368
 		MiniMax Plus Fan Guard - 473368
9 in stock
 $136.44
470441
 		MiniMax Plus Fan Guard Fastener Kit - 470441
24 in stock
 $14.63
470439
 		ThermalFlo Acorn Nut #10-32 - Stainless Steel - 470439
Allow 1-2 Months to Ship
 $9.57
473121
 		UltraTemp MiniMax Single Dryer Line - 1/2 Inch - 473121
Allow 1-2 Months to Ship
 $103.75
Any key items not listed on the above schematic are no longer available.
155187
Not Shown Minimax Plus On/Off Toggle Switch
107 in stock
Item #: 155187
$21.45
473368
2 MiniMax Plus Fan Guard
9 in stock
Item #: 473368
$136.44
470441
3 MiniMax Plus Fan Guard Fastener Kit
24 in stock
Item #: 470441
$14.63
470439
1 ThermalFlo Acorn Nut #10-32 - Stainless Steel
Allow 1-2 Months to Ship
Item #: 470439
$9.57
More Info
473121
16 UltraTemp MiniMax Single Dryer Line - 1/2 Inch
Allow 1-2 Months to Ship
Item #: 473121
$103.75
More Info
473149
22 ThermalFlo MiniMax Heat Pump Compressor Contactor
8 in stock
Item #: 473149
$205.85
473155
19 ThermalFlo MiniMax Plus Transformer
9 in stock
Item #: 473155
$174.29
473381
Not Shown Pentair Heat Pump Union - 2 Inch
30 in stock
Item #: 473381
$50.61
473154
21 UltraTemp MiniMax Plus Capacitor - 3-Phase
10 in stock
Item #: 473154
$86.92
473139
16 UltraTemp 120HC Reversible Drier - 1/2 Inch
Allow 1-2 Months to Ship
Item #: 473139
$244.40
More Info
520272
9 Compool IntelliTouch Water Temperature Sensor - 20 Feet
157 in stock
Item #: 520272
$112.12
473295
30 Pentair Heat Pump Fender Washer
Allow 1-2 Months to Ship
Item #: 473295
$2.56
More Info
473052
29 MiniMax Plus 800-1000R Packless Water Coil
Allow 1-2 Months to Ship
Item #: 473052
$1,687.06
More Info
473026
31 MiniMax Plus Compressor Isolation Kit
Allow 1-2 Months to Ship
Item #: 473026
$34.76
More Info
473135Z
Not Shown MiniMax Reversing Valve Kit
Allow 1-2 Months to Ship
Item #: 473135Z
$441.21
More Info
473175
Not Shown MiniMax Plus ThermalFlo Low-Pressure Switch - 90/120
Allow 1-2 Months to Ship
Item #: 473175
$120.40
More Info
473169
Not Shown MiniMax Plus Wire Harness Trane Compressor
Allow 1-2 Months to Ship
Item #: 473169
$100.92
More Info
9142109
10 Triton C-3 Temperature Sensor O-Ring
44 in stock
Item #: 9142109
$7.92
473070
12 MiniMax Plus Water Pressure Switch
2 in stock
Item #: 473070
$202.17
473223
7 MiniMax Plus ThermalFlo Fan Blade
Allow 1-2 Months to Ship
Item #: 473223
$217.50
More Info
473285
5 ThermalFlo Acorn Nut - 1/4-20
Allow 1-2 Months to Ship
Item #: 473285
$3.44
More Info
473294
27 ThermalFlo Bolt - 5/16-18 - Stainless Steel
Allow 1-2 Months to Ship
Item #: 473294
$3.00
More Info
473150
18 MiniMax Plus ThermalFlo Fan Relay
6 in stock
Item #: 473150
$131.89
