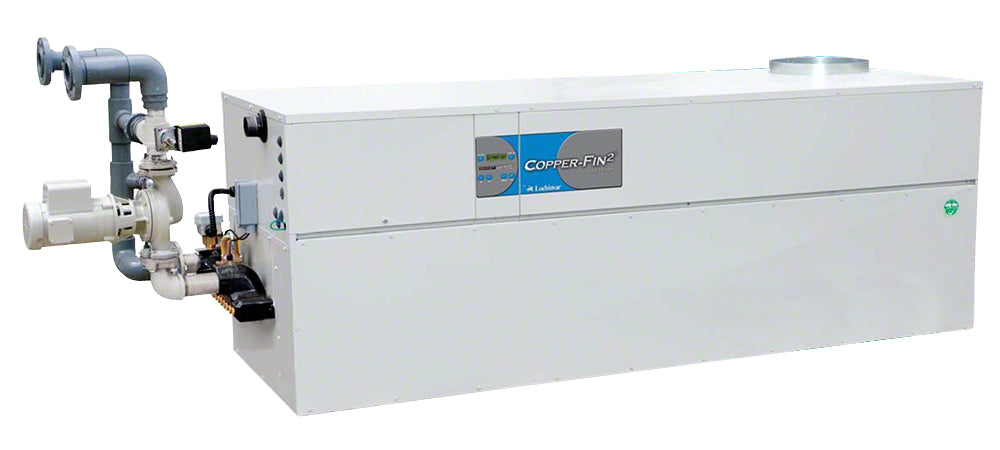

Copper-Fin2 2,070,000 BTUs Commercial Pool Heater - Natural Gas

Description

The Lochinvar CPN2072 Copper-Fin2 2,070,000 BTU Pool Heater is fueled by natural gas and is designed for large commercial swimming pools. The enhanced Low-Nox Copper-Fin2 pool heater includes Lochinvar's exclusive Smart System control. Lochinvar Smart System features precise pool temperature controls and diagnostic information in words (not code). It also features built-in Cascade sequencer controlling up to 8 pool heaters.

The Copper-Fin2 commercial pool heaters have a gasketless tube heat exchanger. This eliminates o-rings and gaskets that are found on other brands. The heat exchanger has glass lined heaters and copper-finned tubes. The extruded integral fins are spaced 7 fins per inch for exceptional heat transfer. And the heat exchanger is built to ASME construction standards for 160 psi working pressure.

Boasting 85% efficiency, the Copper-Fin2 achieves this efficiency through the combination of an advanced fan assisted combustion system and gasketless heat exchanger. This means that 85 cents out of every fuel dollar goes into heating the water. This dramatically reduces the operating cost of your equipment.

The Lochinvar Copper-Fin2 was the first proportional fired, fan assisted pool heater on the market. Every Copper-Fin2 model features a small footprint for passage through a 36 inch door. Each model also features low NOx which is third party tested to less than 20 PPM.

With the Copper-Fin2, you can add available stack frames to double your BTU input in the same space. And the vent diameters are up to 8 inches smaller than conventional atmospheric swimming pool heaters. Approved for indoor or outdoor applications, this highly efficient heater has multiple venting options to fit every installation.

Note: Shipments of this heater to Texas must order parts 100232493 and 100208154.
