S10P Metering Pump - 100 PSI 5 GPD 120 Volts - 1/4 Inch

Description

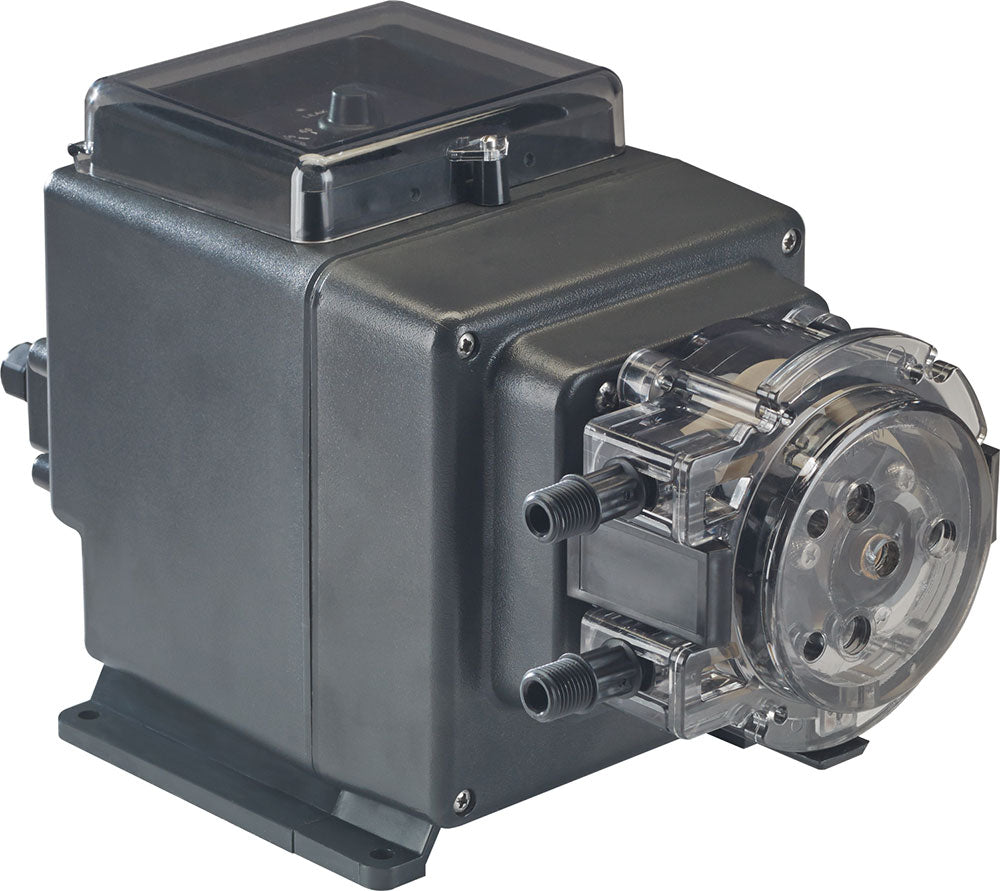

The Stenner S10P Series is a durable peristaltic metering pump activated by flow-responsive equipment. The S10P pump operates on 120 volts utilizing a 6-foot power cord. Flow rate output is 5 gallons per day at up to 100 psi. You can determine flow response with a softener valve, water meter, control valve, flow switch, or any control equipment that responds to water flow. The pump accepts dry contact or a 12-24 VAC/VDC signal. The tubing is 1/4 inch white.

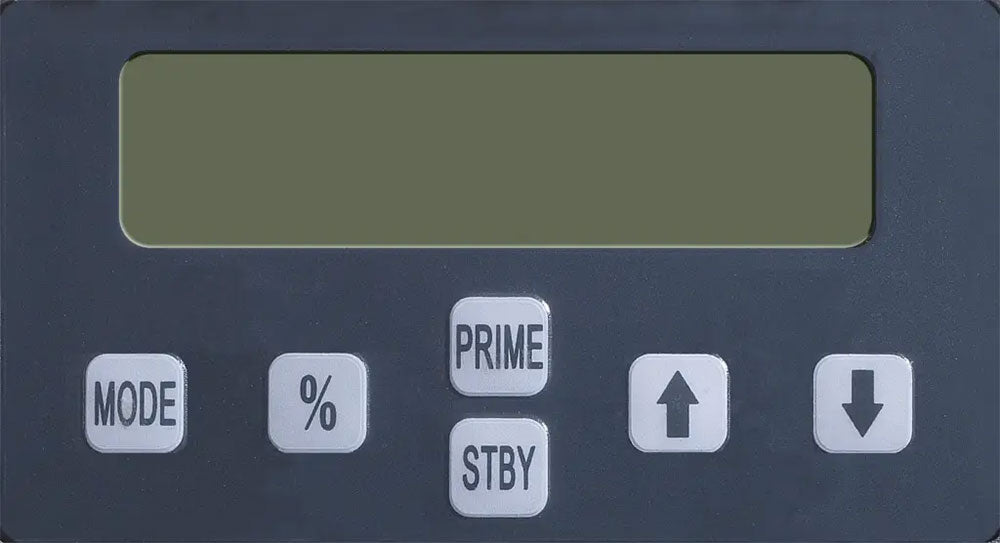

This self-priming pump has four operating modes: 10 PPG dry contact, flow switch (2-wire), seconds mode, and auxiliary. There is a steady distribution of solution with the 10 PPG mode and a 10 PPG dry contact water meter. The pump runs at a set time, set speed, or set flow rate output, depending on the selected mode of operation. The six-button control pad and backlit LCD make programming easy.

The S10P metering pump features leak detection, totally enclosed housing, and a 3-point roller design. The pump package includes 3 connecting 1/4-inch nuts, 1 Duckbill check valve, 3 ferrules, 1 weighted suction line strainer, 1 20-foot roll of suction/discharge tubing, 1 additional pump tube, 2 additional latches, 1 mounting bracket, and 1 manual.
