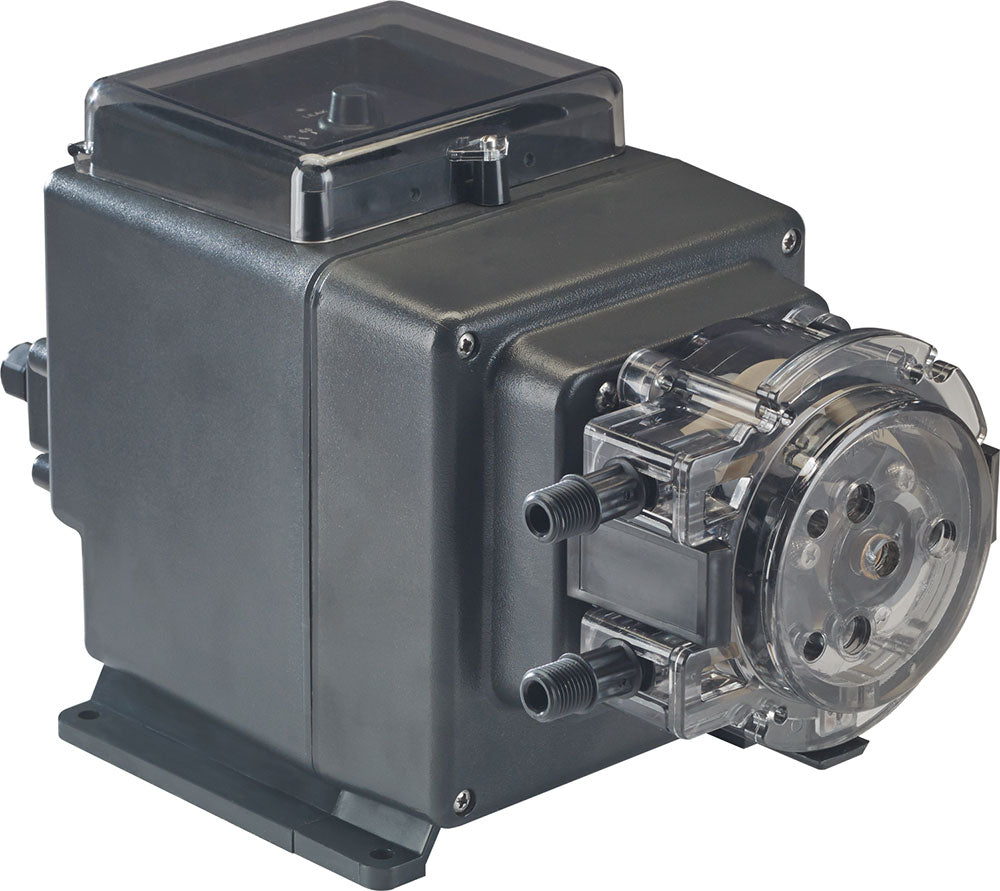

S3V07 Variable Speed Metering Pump - 100 PSI 40 GPD 120 Volts - 3/8 Inch UV

Description

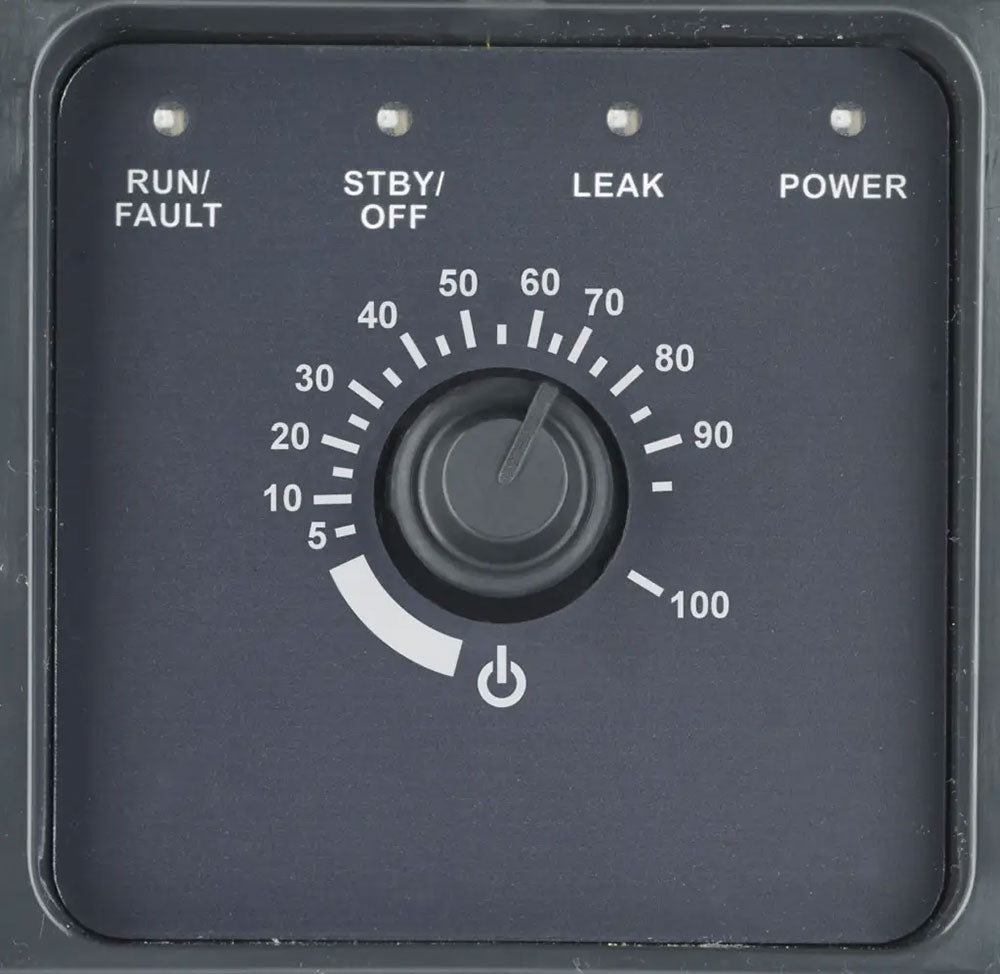

This S3V S-Variable Series peristaltic pump runs on 120 volts, operates at 100 psi, delivers 2 to 40 GPD, and uses 3/8-inch UV black tubing. The S-Variable Series pumps feature leak detection, backup pump capability, and remote operation for industrial water and commercial swimming pool applications. The pumps have 20:1 turndown and run at the speed set by the adjustable potentiometer when power is applied or the standby input is removed. The Series includes LED pump status indicators and three output relays to indicate the pump's status to a separate device, such as a process control device.

The S3V pumps include a factory-installed Leak Detect Jumper to stop the pump if it detects a leak. The jumper may be removed to allow the pump to continue to run when a leak is detected. The pump also has three dedicated output relays: Leak Detect, Run, and Transfer. The Run relay indicates the pump is operating. The Transfer relay signals the primary pump to transfer operation to a backup pump if a leak is detected or if power is lost. The pumps also have a Standby Input that can receive a dry contact signal to remotely stop or start the pump. The standby input is also utilized with the transfer relay to set the primary pump to transfer operation to a backup pump.

The S-Variable Series pumps not only offer practical functions, but also a durable, fully enclosed housing with a NEMA 4X rating. The brushless DC motor uses ball-bearing support, and the switchable power mode improves energy efficiency. The splined shaft in the pump head and roller assembly allows smooth installation and replacement.

The S3V model pumps include: 3 connecting nuts (3/8 inch), 2 adapters (3/8 inch), 1 injection fitting (25 PSI), 1 weighted suction line strainer, 1 20-foot roll of white suction/discharge tubing, 1 additional pump tube, 2 additional latches, 1 mounting bracket, and 1 manual.
